Diaphragm jig separator/ jigger machine for beneficiation

Hits:1623    Time:2016-8-31 17:04:53

Product Details:

                Very reasonable price Hengchang Mineral jig machine with high quality

.jpg

Diaphragm Jig



Side way action diaphragm jig

1.Structure of side way action diaphragm jig, it is also called up way action diaphragm jig. The double compartments side way action diaphragm jig is composed of two jigging chambers connected with each other with certain difference. The structure of each chamber is the same, which consists of framework, driving and moving mechanism, jigging chamber and pyramid bottom box.
2.The working process of double compartments side way action diaphragm jig. Crude ore is fed to jigging chamber from the 1st feed launder, the diaphragm produces vertical alternating current under the action of eccentric link meachnism, which makes the ores separate as their density, the principle is the same as above motioned

Illustrate:

Jig machine ,diaphragm jig belongs to double rooms under the single plug-fuse type. It makes use of water as medium, and separates according to the proportion of the gangue minerals (density). It is the beneficiation equipment.

Superiority: jig machine does the sine wave motion. It has the advantage of high recover, large capacity of treatment, continuous work .



Mineral Jig machine widely used in processing tungsten, tin, antimony, mercury, alluvial gold deposits, manganese ore, barites, fluorite, lapis lazuli, ore, pyrite, limonite and ore dressing and hematite etc all kinds of smelting slag metal recycling. As this machine is a small size, so it can used as test machine in lab.



.jpg

Technical parameters of gold Jigger machine

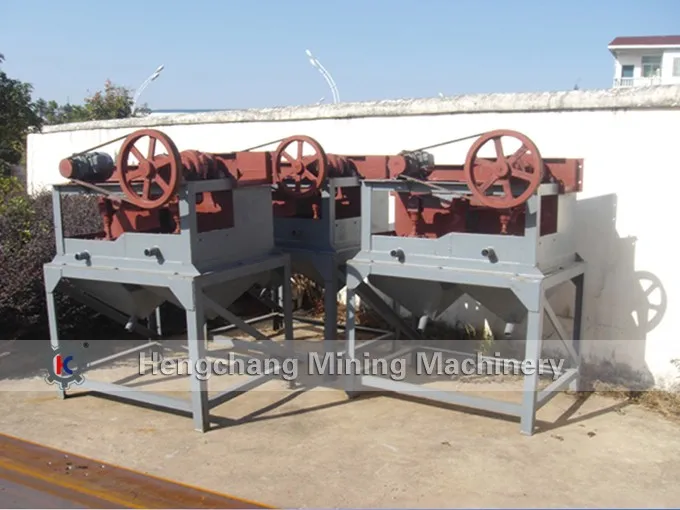

300*450 Diaphragm gold jig Machine pictures
