Fiber glass 5LL-1200 Gravity Spiral Chute /Spiral separator/Spiral concentrator

Hits:1463    Time:2016-8-25 11:12:14

Product Details:

.jpg



Common type Fiber glass Gravity Spiral Chute /Spiral separator/Spiral concentrator



Applications:

Fiber glass Spiral separator has been used in to classify the granularity 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon and other metals. The non-metallic minerals which have a big enough specific gravity difference.


It has been used in to classify the granularity 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon and other metals. The non-metallic minerals which have a big enough specific gravity difference.


Descriptions:

Fiber glass Spiral separator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in seashore and riverside. The product is made of the fiber glass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, and anti-rust, corrosive proof and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment. Our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified.


We make the serialized with a special kind of grooved spiral separator to be selected by colored, ferrous metal mine, coal chemical industry, coal dressing, sulfur factory as well as the scientific research, the design department, the colleges and universities test chamber.


Feature & Benefits of Fiber glass Spiral separator:


-Reasonable structure and small occupation area.


-High recovery, high efficiency, and precise separation.


-Light in weight, rust and corrosion resistant.


-Simple installation and Minimal maintenance requirements.


-Low operating cost and long operating life.


-Reliable running with minimal operator attention.


-Strong adaptability to fluctuation of feeding amount, density, size and grade.



Technical parameters of Common type Fiber glass Spiral chute /Spiral separator/Spiral concentrator


Model

5LL-1500

5LL-1200

5LL-900

5LL-600

5LL-400

Outside dia. (mm)

1500

1200

900

600

400

Screw pitch (mm)

540,720

900,720,540

675,540,405

450,360,270

240,180

Screw Pitch dia. Ratio

0.75,0.6,0.45

0.75,0.6,0.45

0.75,0.6,0.45

0.75,0.6,0.45

0.6,0.45

Lateral slope (°)

9

9

9

9

9

Maximum starts per column

4-2

4-2

4-2

3

2

Feeding Size(mm)

0.3-0.02

0.3-0.03

0.3-0.03

0.2-0.02

0.2-0.02

Feeding Density(%)

25-55

25-55

25-55

25-55

25-55

Capacity(t/h)

8-6

4-6

2-3

0.8-1.2

0.15-0.2

External Size

Length(mm)

1560

1360

1060

700

460

Width(mm)

1560

1360

1060

700

460

Height(mm)

5230

5230

4000

2600

1500

Weight (KG)

800

600

400

150

50



Many Dia. 1200mm Spiral Blade of common type fiber glass Spiral separator have in stock!

006



Rotary type Fiber glass Spiral Chute /Spiral separator/Spiral concentrator



Product description:



Rotary fiber glass Spiral separator is integrated the common type fiber glass spiral separator,  fiber glass shaking table, centrifugal concentration machine characteristics of the equipment. For mining, mineral processing, it is the best equipment, especially the seaside, riverside, sand beach, the stream of placer mining is more ideal. The product has the advantages of reasonable structure, simple installation, covers an area of small, simple operation, stable ore beneficiation, clear, large processing capacity, high efficiency enrichment ratio high, high recovery rate, reliable operation characteristics. Have weight light, moisture-proof, rust-proof, corrosion resistance, of the feeding quantity and concentration, particle size, quality of volatility adaptability is strong, no noise.



(More others detailed info is similar to the Common type fiber glass Spiral separator).





Technical parameters of Rotary type Fiber glass Spiral chute /Spiral separator/Spiral concentrator



Model

Screw

pitch

(mm)

Head Number

Feeding size

(mm)

Feeding density (%)

Capacity

Motor Power

 (kw)

Dimension (mm)

Weight

t/h

(L×W×H)

kg

CBXΦ1200

720

3

0.6-0.05

30-45

4.5-6

0.8

1240×1450×3870

1088

CBXΦ940

500

2

0.6-0.05

30-45

2.4-3

0.8

1150×1550×3100

863

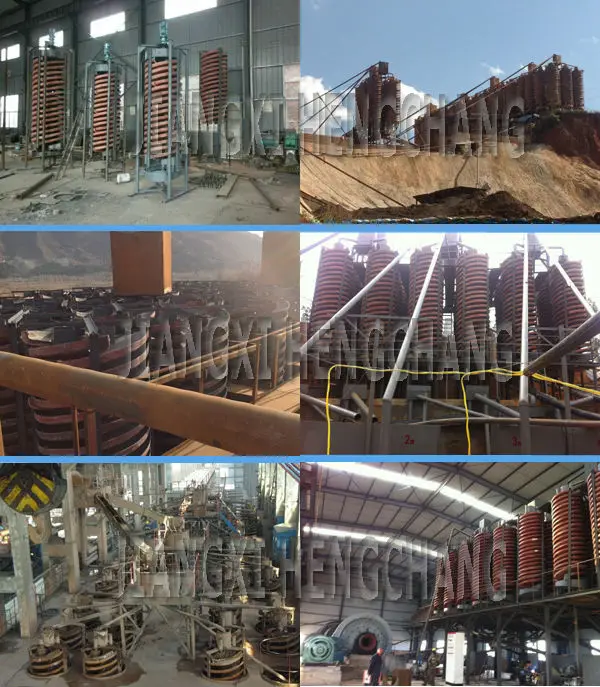

The Rotary fiber glass Spiral separator/Spiral concentrator in our workshop

Rotary fiber glass Spiral separator is integrated the common type fiber glass spiral separator, fiber glass shaking table, centrifugal concentration machine characteristics of the equipment.

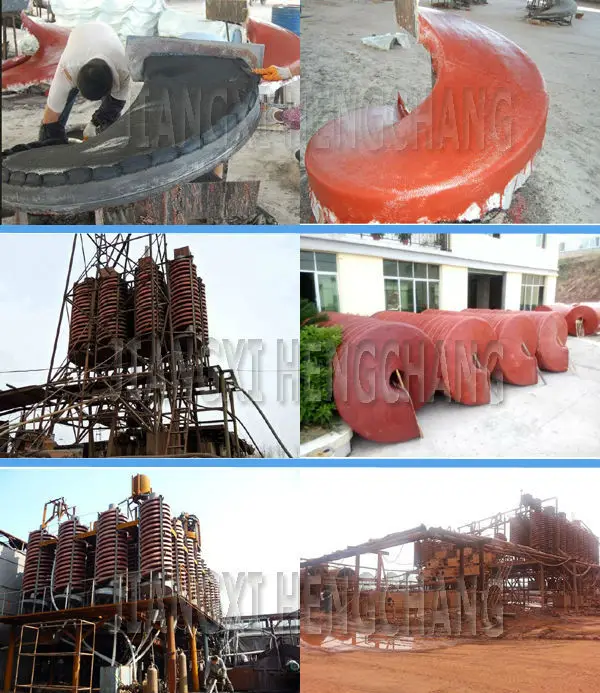

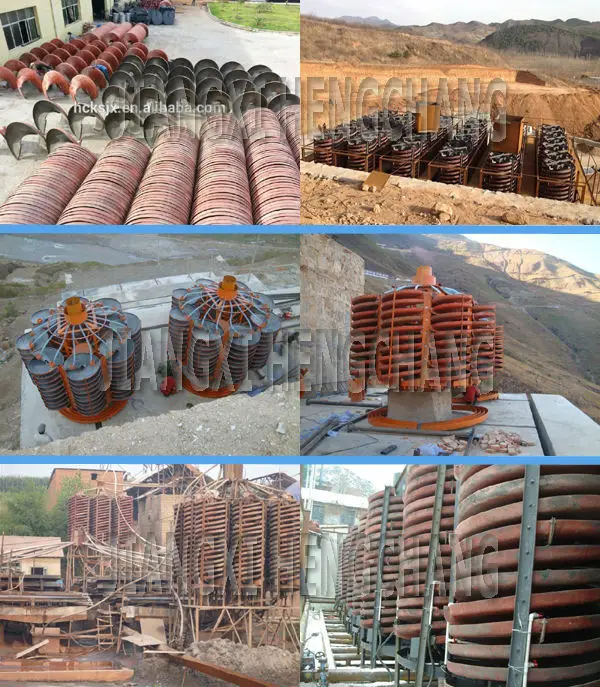

 Our Fiber glass Spiral separator were used in one mine site
-3 002001-2 -1 005
Our other machines for sale
004 008 006 EC.1282.0A131118.JHM3107.jpg



Welcome to visit our factory in your free time!

Also you could send to my email as follow:

1.Name of raw ore?

2.Production capacity (t/h)?

3.Particle size of raw ore(mm)?



We will suggest you the best type machine.
