6-S Gold Shaking table Deck surface :

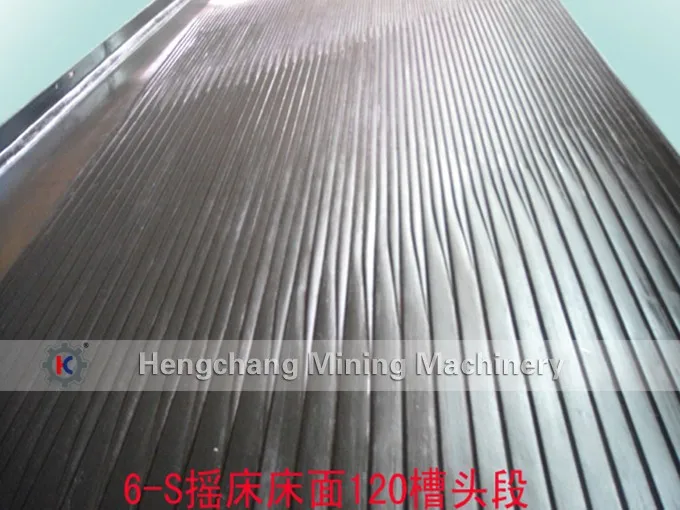

The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, requiring little maintenance. The specific gravity of fiberglass made into decks is one third of that of steel, while its strength reaches as high as 70% that of steel. This fiberglass Shaking table also has the characteristic of water-resistance and corrosion-resistance and can hold the shape unchangeable at ±50.

 Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table


Ore Feed and Water Box of 6-S Gold Shaking table:

A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very equally distribution of Ore and Water feed.



Transmission Mechanism of 6-S Concentrating Shaking table:

It is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.



Place of ore and water feeding Box for this type 6-S gold Shaking table
Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table

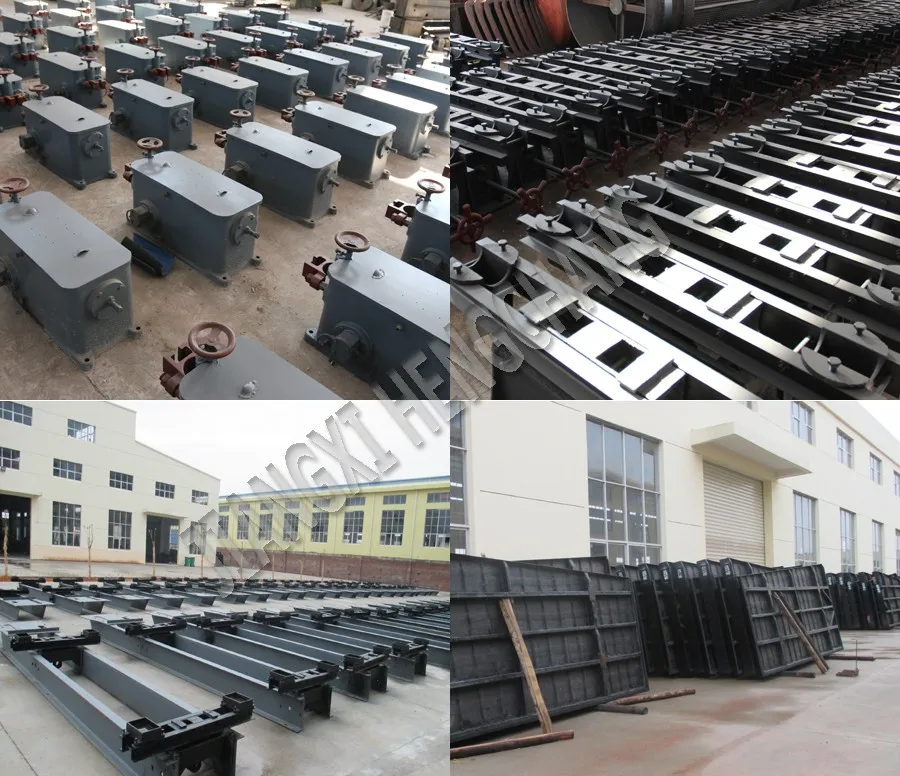

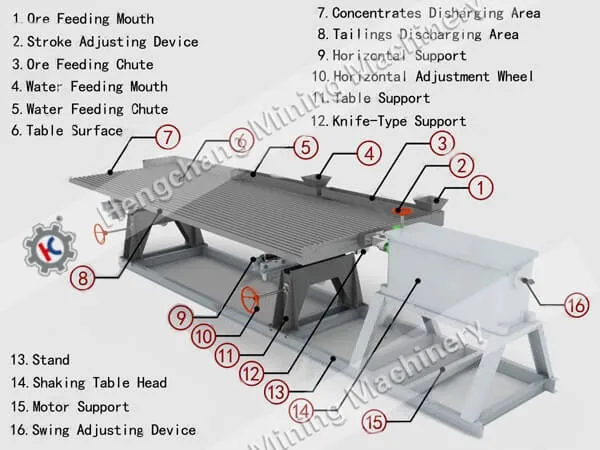

Transmission Mechanism,support legs,Deck, bottom steel support of 6-S fiberglass gold Shaking table
Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table

Specification of 6-S gold Shaking table
The 6-S gold Shaking Table have 3 distinct deck surface designs available.

The coarse ore deck is designed for recovering particles sized from 0.5 mm to 2 mm; the fine ore deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the ore slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.


Name

Coarse ore deck

Fine ore deck

Ore slime deck

Dimension

Length (mm)

4450

4450

4450

Transmission end width (mm)

1855

1855

1855

crude ore width (mm)

1546

1546

1546

Max. feeding size (mm)

2

0.5

0.15

Feed amount (t/h)

30-60

10-20

15-25

Feed density (%)

25-30

20-25

15-25

Stroke (mm)

16-22

11-16

8-16

Frequency ( f)

45-48

48-53

50-57

Water quantity added(t/h)

80-150

30-60

10-17

Horizontal obliquity (°)

2°30′-4°30′

1°30′-3°30′

1°-2°

Longitudinal obliquity (%)

1.4

0.92

--

Dressing Area (m2)

7.6

7.6

7.6

Cross-section Shape of table

Rectangular

Saw tooth

 triangle

Motor Power (kw)

1.1

1.1

1.1

Transmission Mechanism

Eccentric linkage


Base Support frame and Installations words:
A choice of 6-S fixed shaking table, 6-S small channel bar shaking table, 6-S big channel steel shaking tableand 6-S Double deck Shaking table are available.

Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table        6S Fixed Type Shaking Table
This type needs the cement foundation to bury the foot bolt in advance.
Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table      6S Small Channel Steel Support Shaking Table
This type has the same effect as the ordinary support,it has the following characteristics: it doesn't need the cement to bury the foot, fast and simple installation,the cost is more competitive.
Fiber glass 6-S Concentrating Gold Shaking table and Vibrating table      6S Big Channel Steel Support Shaking Table
This type has the same effect as the ordinary support,it has the following characteristics: it doesn't need the cement to bury the foot, fast and simple installation. It's suitable for uneven surface.

Parameter of Gold Shaking Table:

Model Storke(mm) Feed Size(mm) Feed density Capacity(t/h) Power Weight(kg)
6S-2250×1855×1546 8-22 2-0.074 15-30 0.6-2.5 1.1 800
LY-3000×1620×1360 6-30 2-0.074 10-30 0.4-1.5 1.1 550
LY-2100×1050×850 12-28 2-0.074 10-30 0.3-0.8 1.1 350
LY-1100×500×430 9-17 2-0.074 10-30 0.05-0.2 0.55 150



6-S fiberglass Double-deck gold Shaking table and double-deck Shaking table mine site view
