Shicheng mining machine high quality gold Trommel Machine

Hits:1748    Time:2017-6-20 9:43:02

Product Details:

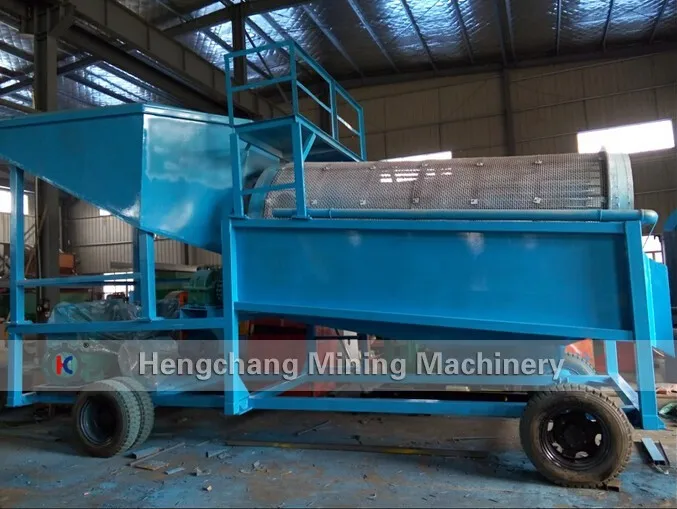

Shicheng mining machine high quality gold Trommel Machine
small gold extraction mini gold trommel for sale.jpg
Introduction

The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Trommel screens are constructed of high quality material,designed for high performance, high production rates, lower operating costs and lower maintenance.This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

Specification

Specification of high quality gold trommel machine
Model Processing Motor Trommel Trommel Total Discharge Dimensions
capacity power diameter length weight size (L×W×H)
(t/h) (kw) (mm) (mm) (kg) (mm) (mm)
GT1015 50 4 1000 1500 2200 3-10 3000x1400x2145
GT1020 100 5.5 1000 2000 2800 3-10 3460x1400x2145
GT1225 160 7.5 1200 2500 4200 3-10 4146x1600x2680
GT1530 250 11 1500 3000 5100 3-10 4460x1900x2820
GT1545 350 15 1500 4500 6000 3-10 5960x1900x3080
GT1848 450 22 1800 4800 7500 3-10 6500x2300x4000
GT2055 600 30 2000 5500 8600 3-10 7500x2300x4500


Main Features


1. Configured for economical & efficient classification, Screening and grading
2. Heavy duty trommel drum with lifters at the front to facilitate material break up
3. Screen replaceable for different mesh sizes
4. Multiple screen size
5. Easily changed screen plates
6. Largest processing capacity in the industry
7. Unique screen design, result in higher capacities, longer screen life and no material clogging
8. Heavy duty feed hopper and extension
9. Discharge chute
10. Gear drive mechanism
11. Variable speed drive mechanism

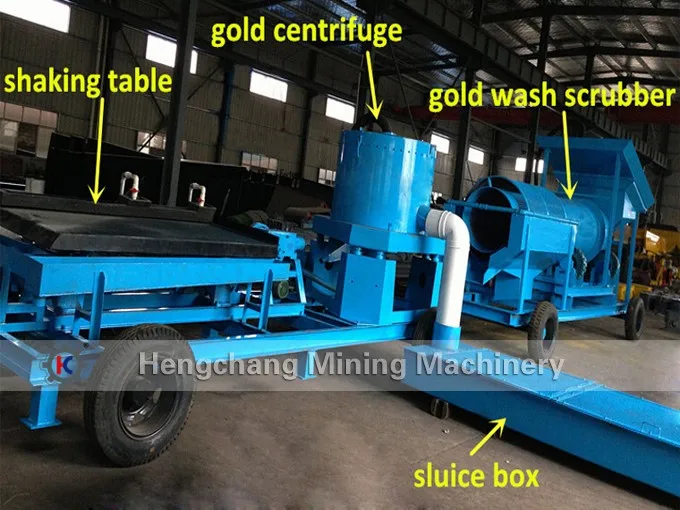

Portable Alluvial Gold Trommel Wash Plant

Shicheng mining machine high quality gold waschanlage.jpg

Scrubber
Shicheng mining machine high quality gold waschanlage.jpg

Gold Sluice Machine

Shicheng mining machine high quality gold waschanlage.jpg

About us

Our company was established in 1995 with the registered capital of 1000000. We have more than 100 staffs: 18 research engineers ,60 technicians and expencienced after-sale service team. Our company covers an area of 20000 square meters and wons several awards of excellent local enterprise .We are acknowledged as the backbone enterprises in metallurgical industry.

Best price Durable gold recovery equipment for sale

Pre-sale service:

We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.

Sale-service:

We will send technicians to you for guiding the equipment installation, commissioning and staff

training.

After-sale service:

We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

All machines have one year warranty to make sure your machine work well.


Warmly welcome you come to visist our factory
Our factory located at Ganzhou city, Jiangxi province, China.
Visit line: Take flight from your country to Guangzhou airport in China, and then take flight from Guangzhou to Gan zhou airport, then we will send the car to pick  you up from Ganzhou airport.
Best price Durable gold recovery equipment for sale
Contact Person: Jody Wu
Mobile, WeChat, WhatsApp: + 86 137 6772 2815
